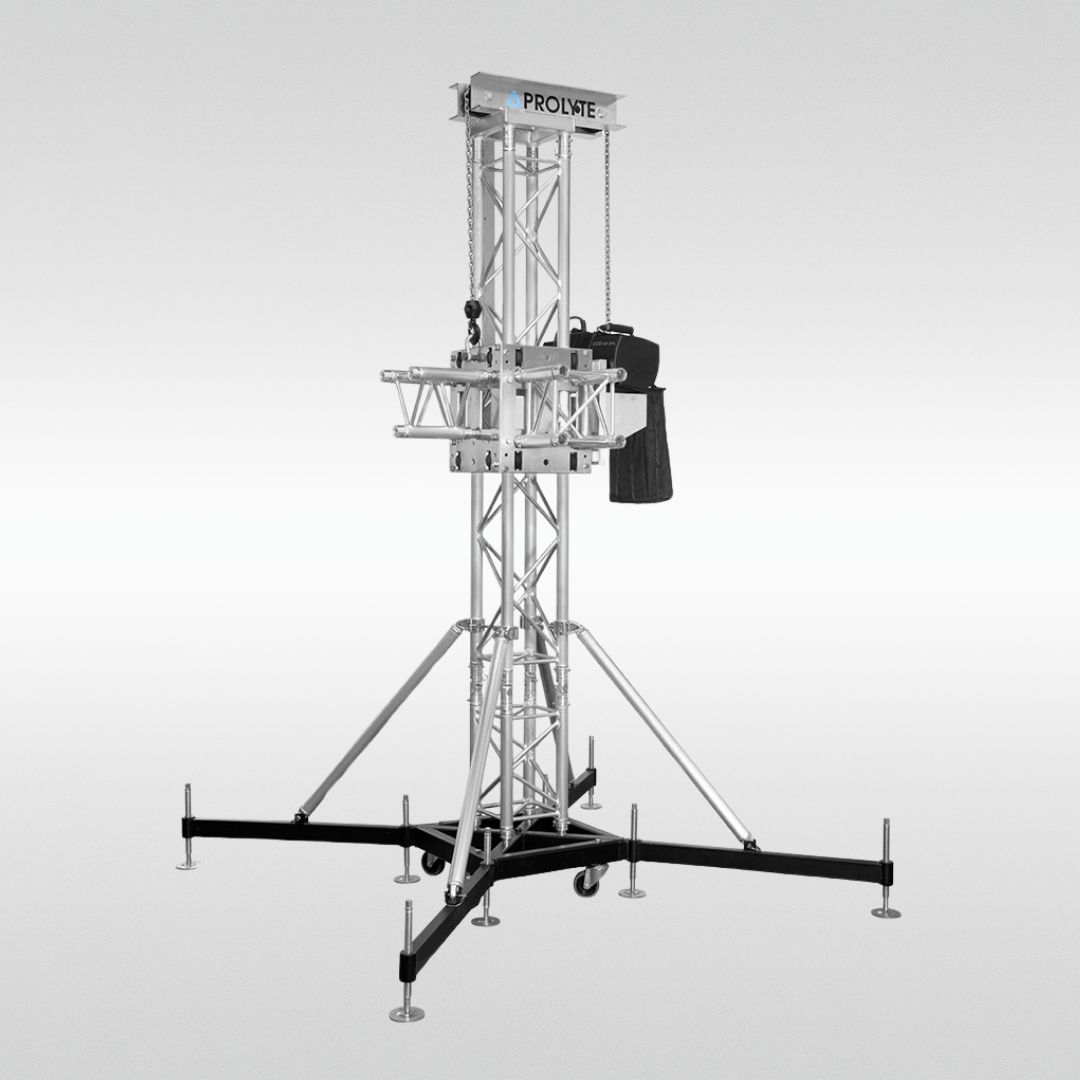

PROLYTE TRUSS BASE
About the Products
- Fully bolted sleeveblock, making it stronger than welded versions
- Sleeveblock with attachment points on four sides for various truss types
- The top-and base section facilitate either a hand winch or chain hoist
Technical Specifications
| Max. height | 8.00 m |
| Max. loading capacity | 1000 kg* |
| Max. load handwinch | 750 kg (750M Tower |
| Type mast sections | H30V |
| Sleeve block suitable for truss-series | X or H30D, X or H30V, X or H40D and X or H40V, S36R, S36V |
| Alloy alu parts | EN-AW 6082 T6 |
| Coupling system tower | CCS6 series |
| Self weight | 115 kg |
