SHOWTEX AUTO REVEAL SYSTEM / KABUKI DROP SYSTEM

Description

About the Product

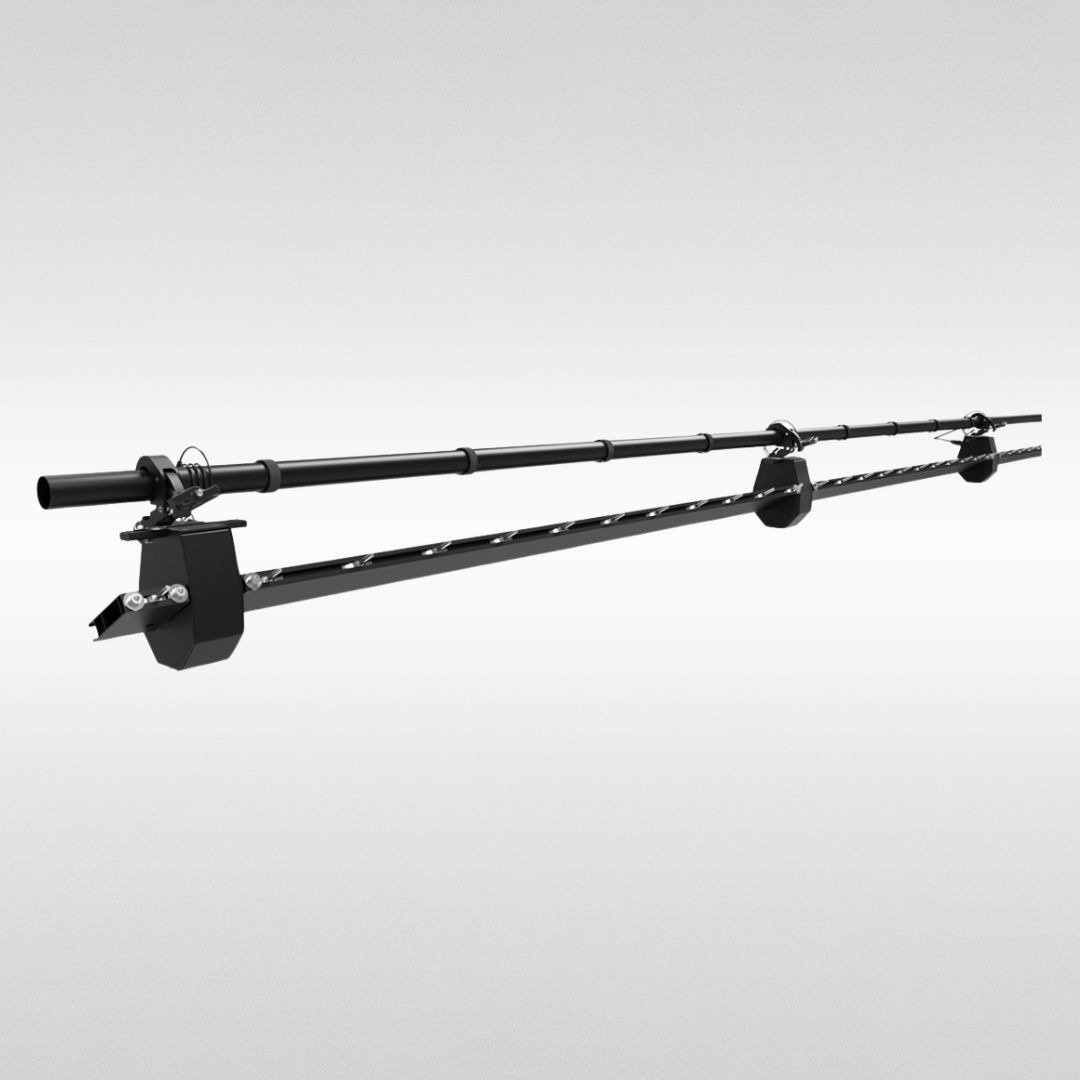

Unveil a new product with a curtain drop and add an element of surprise they’ll never forget. A Kabuki system is perfect for revealing the top act in your show at the push of a button.

The immediate response makes it the fastest Kabuki drop in the industry.
You can create a perfectly even curtain wall and drop it at exactly the right moment.

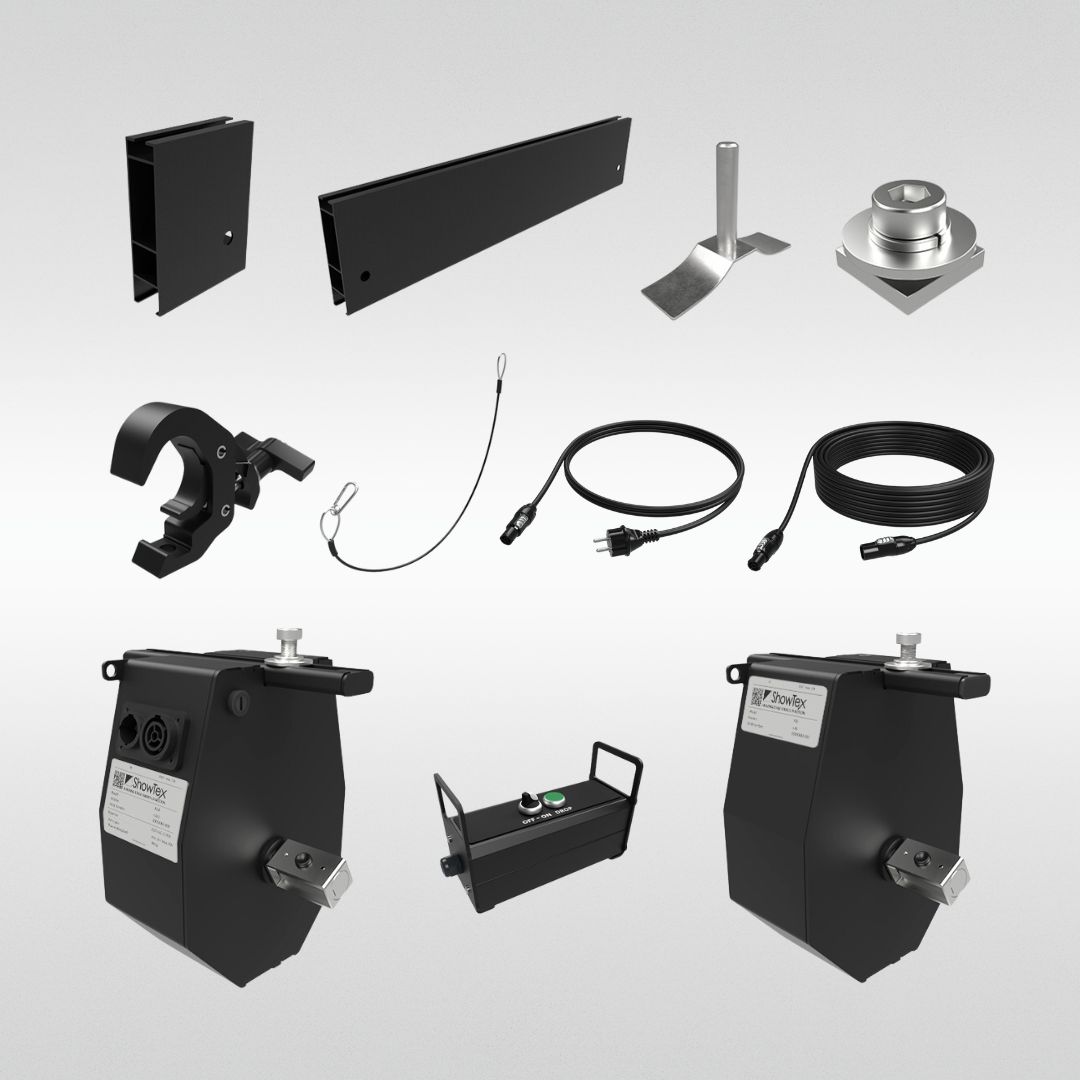

The modular system allows for an almost endless extension by connecting brakes and bearings to the Profile.
The unique design will not release the curtain in the event of a power outage.



Specifications

  • 220V single phase motor with wired remote control
  • Power supply : 230v • 50Hz • 16A
  • Motor output : 0.435 Kw
  • Output speed : 70 RPM
  • Output torque : 18 Nm
  • Duty cycle : S2:4min
